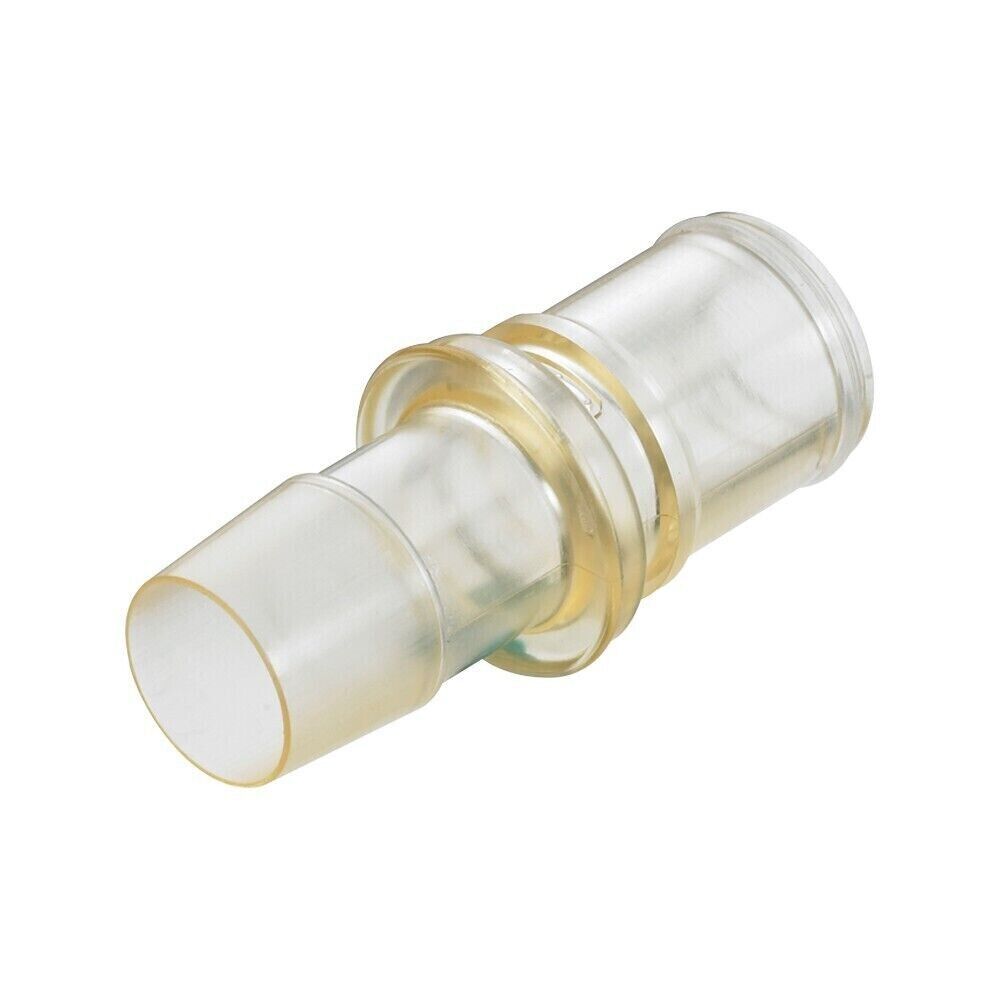

5PK CPC MPX22839M 31311-73 Quick-Disconnect Hosebarb Insert 1/2" EXP. 5/25/25
5PK CPC MPX22839M 31311-73 Quick-Disconnect Hosebarb Insert 1/2" EXP. 5/25/25
Couldn't load pickup availability
CPC® Quick-Disconnect Fittings
Description
These CPC® plastic quick-disconnect fittings feature an ergonomic design and thumb latch for an easy grip and simple operation. Simply plug the coupling insert into the coupling body to connect fittings. Fittings will lock into place immediately. To disconnect fitting halves, simply press the button on the coupling body.
A complete coupler requires a fitting body and an insert (order separately).
Specifications
- Max. Operating Pressure: 60 psi
- Barb Size / Tubing I.D. (Port 1): ½"
- Connection type: Quick-Disconnect to Barb
- Fitting Material: Polysulfone
- Quick-disconnect Flow Size: ½"
- Sanitary Gasket Size: 14
- Max. Temperature: 148 °C (300 °F)
- Min. Temperature: –40 °C (–40 °F)
- Sterilization: Autoclave or gamma
- Warranty: 1 year
Certificates
- CE certificate
Key Features
- Repackaged in an ISO 9001 facility in an ISO Class 7 Cleanroom
- Acetal and ABS fittings are ideal for use with corrosive fluids
- Polycarbonate and polysulfone materials meet USP Class VI requirements
More About This Item
Fittings connect in a snap.
These CPC® plastic quick-disconnect fittings feature an ergonomic design and thumb latch for an easy grip and simple operation. Simply plug the coupling insert into the coupling body to connect fittings. Fittings will lock into place immediately. To disconnect fitting halves, simply press the button on the coupling body.
A complete coupler requires a fitting body and an insert (order separately).
